MIL-DTL-24402F(SH)
6.10 Changes from previous issue. Marginal notations are not used in this revision to identify changes with
respect to the previous issue due to the extent of the changes.

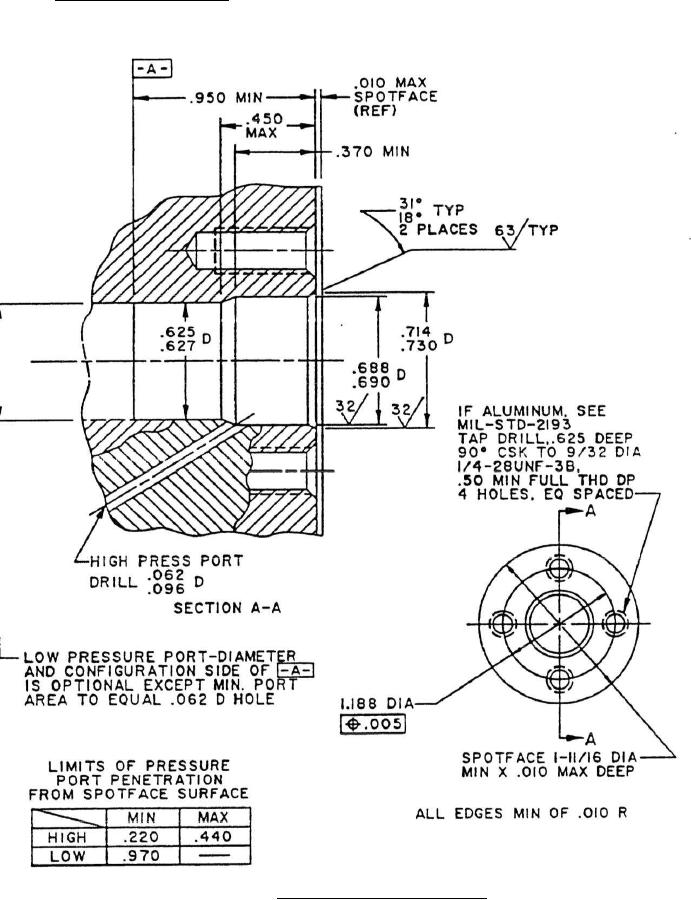

FIGURE 1. Differential pressure indicator port.
14
