MIL-PRF-52308J
+.00
20.00
-.06
2X ∅1.350 +.015
2X .75
SEE NOTE 2
-.000
MIN
∅3.75
2X ∅1.190 +.015
MAX
-.000
SEE NOTE 3
SEE NOTE 6
2X .19 ±.08
2X.140 +.010
-.000
NOTES:
1. DIMENSIONS ARE INCHES.
2. THIS AREA TO BE LEFT FREE FROM FILTER ELEMENT MATERIAL, BOTH ENDS.
3. PROVIDE O-RING IN EACH END GROOVE.
4. APPLY LIGHT COATING OF SILICONE COMPOUND TO O-RING GROOVES AND O-RING.
5. FLOW SHALL BE FROM INSIDE TO OUTSIDE.
6. INSIDE DIAMETER AND CONFIGURATION ARE OPTIONAL.
7. REFERENCE: FOR USE WITH 1.182-1.187 MALE GLAND AT 100 PSI MIN, BOTH ENDS.
8. NOMINAL RATE OF FLOW IS 20 GPM.

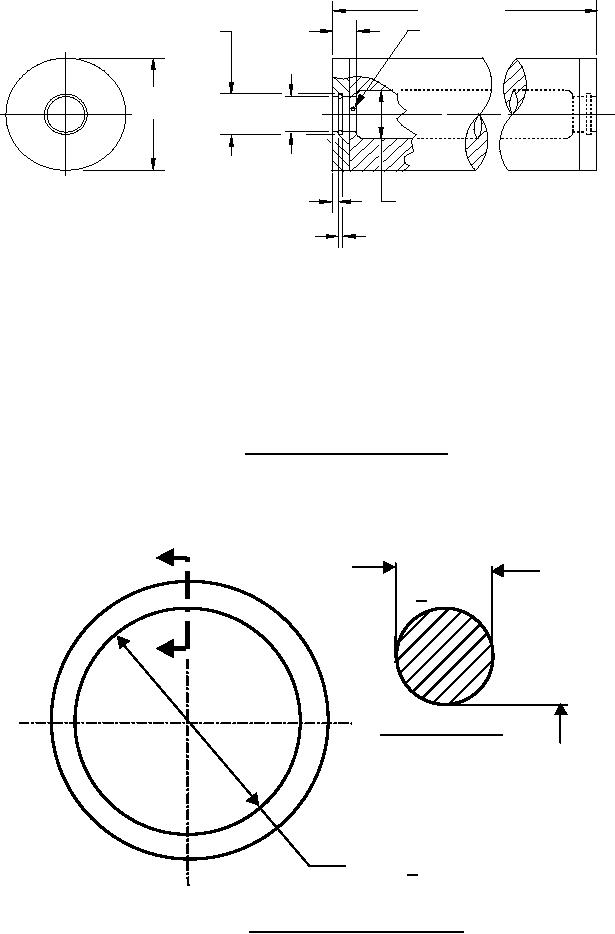

FIGURE 1. Filter-coalescer element.
A
∅.103
+ .003
A
SECTION A-A
I.D.
∅1.174 + .006 I.D.
FIGURE 2. O-ring size and geometry.
