MILITARY SPECIFICATION SHEET
FILTER ELEMENTS, HYDRAULIC, DISPOSABLE
This specification is approved for use by the Naval Sea Systems Command,
Department of the Navy, and is available for use for by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the filter elements described herein shall consist
of this specification sheet and the issue of the following specification listed
"in that issue of the Department of Defense Index of Specifications and Standards
(DODISS) specified in the solicitation: MIL-F-24702(SH)

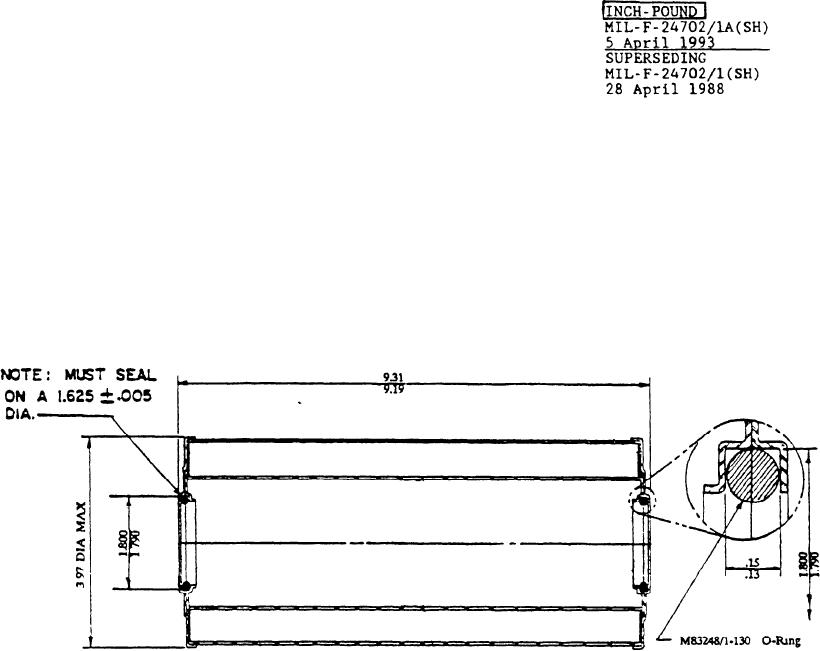

Figure 1. Filter element
NOTES:
Dimensions are in inches unless otherwise specified.
1.
Material shall be in accordance with the general specification.
2.
3.
Seals shall be in accordance with MIL-R-83248 and MIL-R-83248/1,
and shall be MIL-R-83248/l-130 size.
4.
Quality conformance inspection for each element acquisition shall
be in accordance with 4.4 of this specification.
Test fluid shall be with or without antistatic additives.
5.
6.
Test flow rate for the filtration performance test (4.7.2) shall
be as specified in table I.
AMSC N/A
1of3
FSC 4330
DISTRIBUTION STATEMENT A.
Approval for public release, distribution is
unlimited.
