INCH-POUND
MIL-F-24702/2(SH)
11 January 1994
MILITARY SPECIFICATION SHEET
FILTER ELEMENTS, HYDRAULIC, DISPOSABLE
This specification is approved for use by the Naval Sea Systems Command,
Department of the Navy, and is available for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of the following
specification listed in that issue of the Department of Defense Index of
Specifications and Standards (DODISS) specified in the solicitation:
MIL-F-24702(SH).

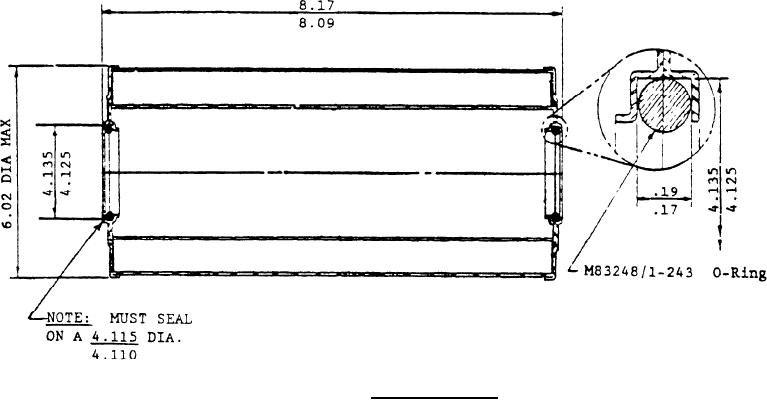

Filter element
FIGURE 1.
Notes:
1.
Dimensions are in inches unless otherwise specified.
2.
Material shall be in accordance with the general specification.
3.
Seals shall be in accordance with MIL-R-83248 and MIL-R-83248/1, and
shall be MIL-R-83248/l-243 size.
4.
Quality conformance inspection for each element acquisition shall be
in accordance with 4.4 of this specification.
5.
Test fluid shall be with antistatic additives.
FSC 4330
AMSC N/A
DISTRIBUTION STATEMENT A. Approval for public release:
Distribution unlimited.
1of2
